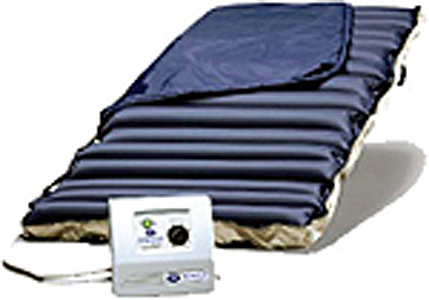

AME 300 MATTRESS OVERLAY

Designed using deep cell air technology for international use, the AME300 Mattress has 20 nylon-coated, 8-inch-high air cells to immerse and envelop the patient for optimal pressure redistribution. The AME300 Mattress also features a foam base for additional protection during power outages and is covered with a quilted Plexus® nylon top cover that reduces shear. Complete with an easy to use AME300 Controller featuring a pressure selection dial control, the AME300 Mattress System is an ideal pressure management solution for home care and healthcare facilities.

  KEY PRODUCT FEATURES
  • Selectable therapy mode of reactive or alternating pressure
  • Alternating pressure every five minutes for enhanced therapy
  • Modular design facilitates cell interchangeability, cleaning and set-up
  • Provides pressure management throughout entire alternating cycle
  • Plexus® quilted top sheet is highly vapor permeable and oversized, providing low friction and low shear. Machine washable, the cover is available in Nylon or Silver3®, which is embedded with silver ions for added protection
  • Quick hose release for rapid CPR deflation
  • Compatible with the optional Foot Stop/ZIP Cushion™ to help prevent foot drop while floating the heel to eliminate heel pressure
  • Lightweight and compact for ease of transporting
  • User-friendly control unit allow the caregiver to adjust for customized therapy;
  • Equipped with "Max. Inflate" for easy patient positioning;
  • Patient settings are restored after power outages for nursing convenience;
  • Lightweight and compact for easy transport; and
  • CPR quick-release for rapid deflation.
    • Cycle time: 5 minutes.
    • Weight capacity: 350 lbs.
    • Dimensions: 34"w x 76"l x 5"h.
    • Warranty: 2-yr limited on air controller and 1-yr on air mattress.
  OPERATIONAL INSTRUCTIONS
There are currently no operating instructions for the AME300 Overlay.
  AVAILABLE LITERATURE
extricare brochure ame 300 overlay mattress AME's 300 Overlay CLICK HERE
Click here to download Adobe Acrobat Reader.
  DIMENSIONS:

Control Unit: 12"w x 9"h x 6"d (31cm x 23cm x 15cm), 5.6lb (2.6kg)
Mattress: 34”w x 80”l x 10”h (86cm x 203cm x 25cm), 19lb (6.8kg)
Overlay: 34”w x 80”l x 5”h (86cm x 203cm x 13cm), 15lb (6.8kg)

Electrical Rating: 230V, 50HZ, .5A
Agency Approvals: EN60601-1, EN60601-1-2
Warranty: Control Unit: 2 year limited, Mattress/Overlay: 1 year limited
Weight Limit: 350 lbs.
Medicare HCPCS Code: E0277
